Quicrun Fusion Rock Crawler Motor/Controler 1800kV

Hobbywing Quicrun Fusion Combo for Rock Crawler 1800kV

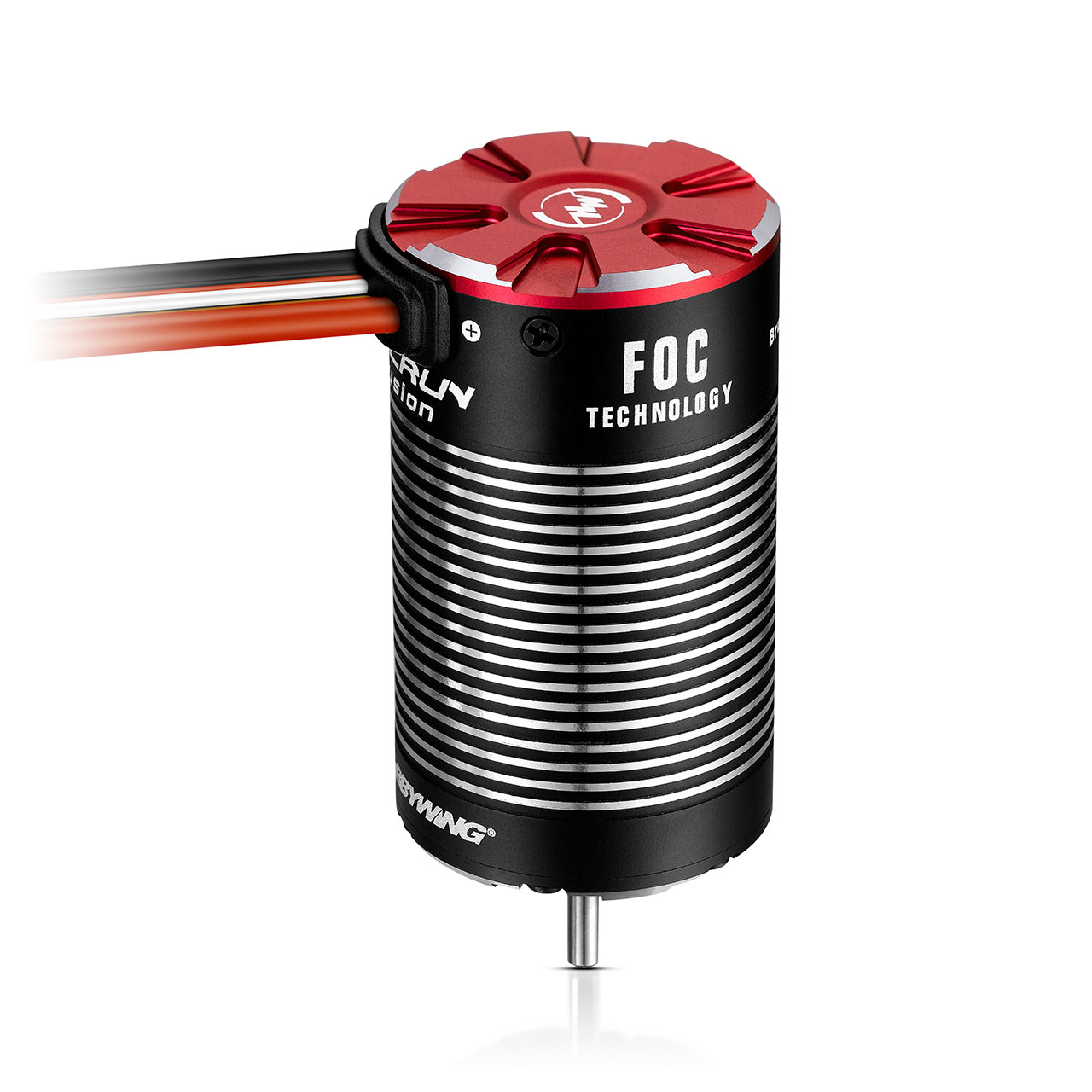

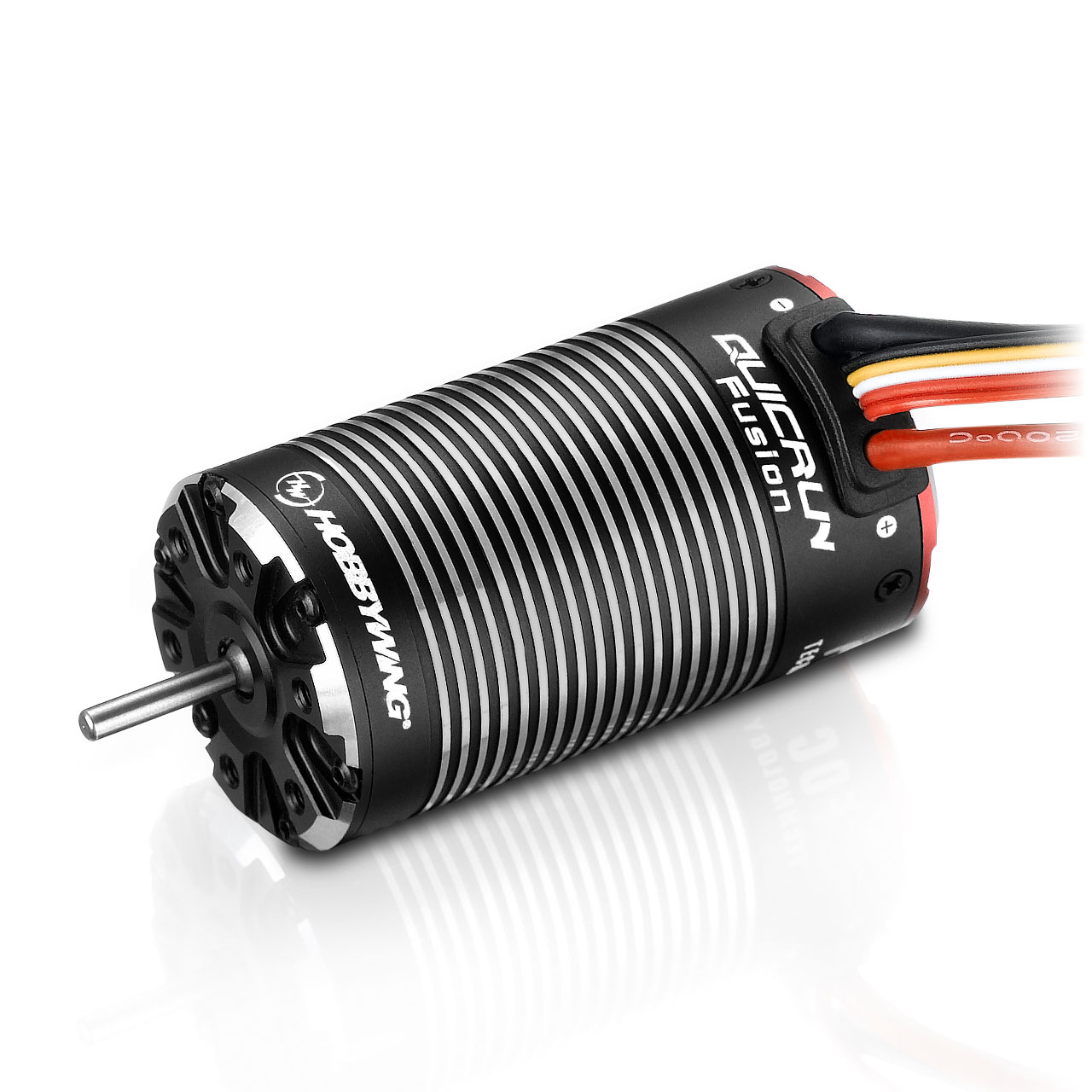

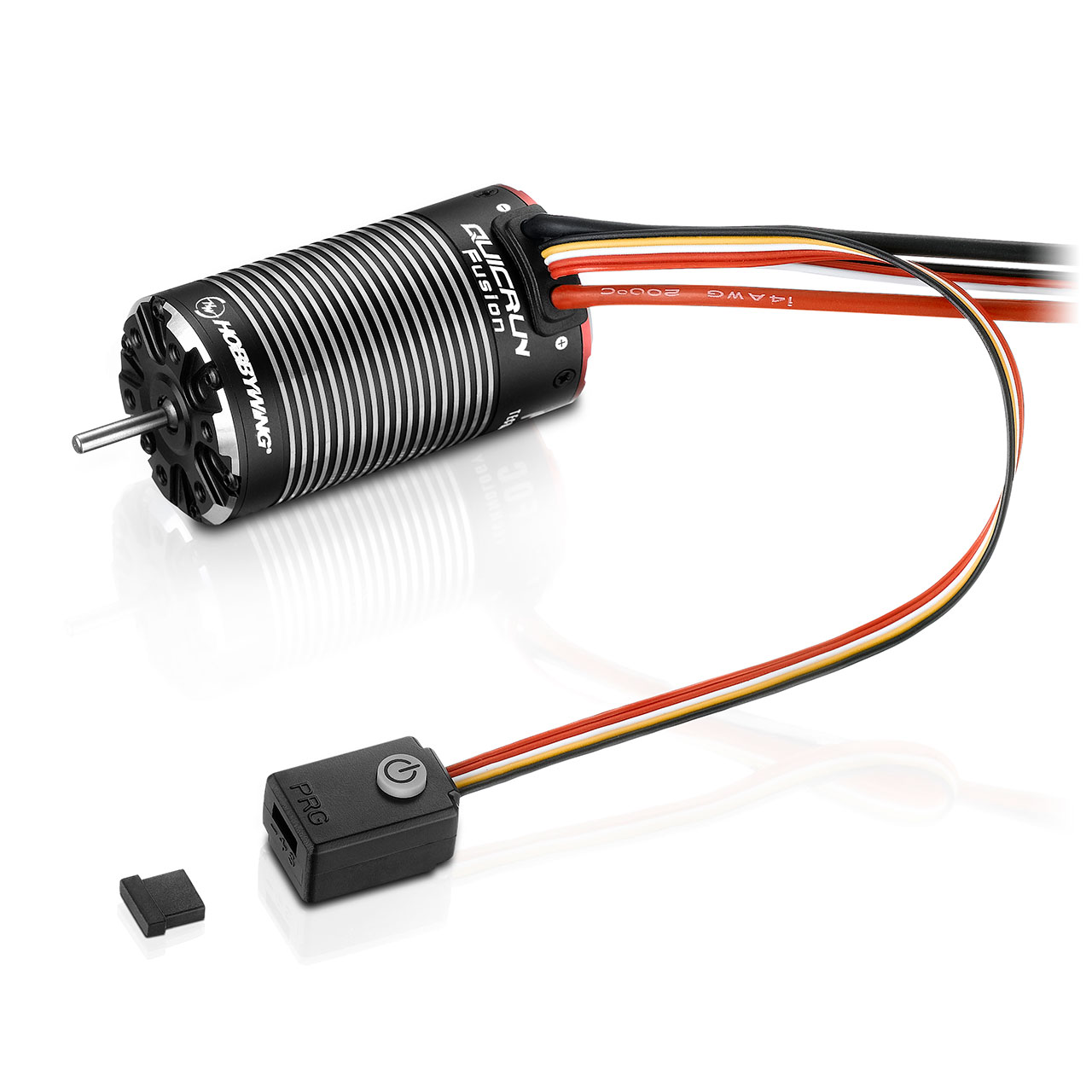

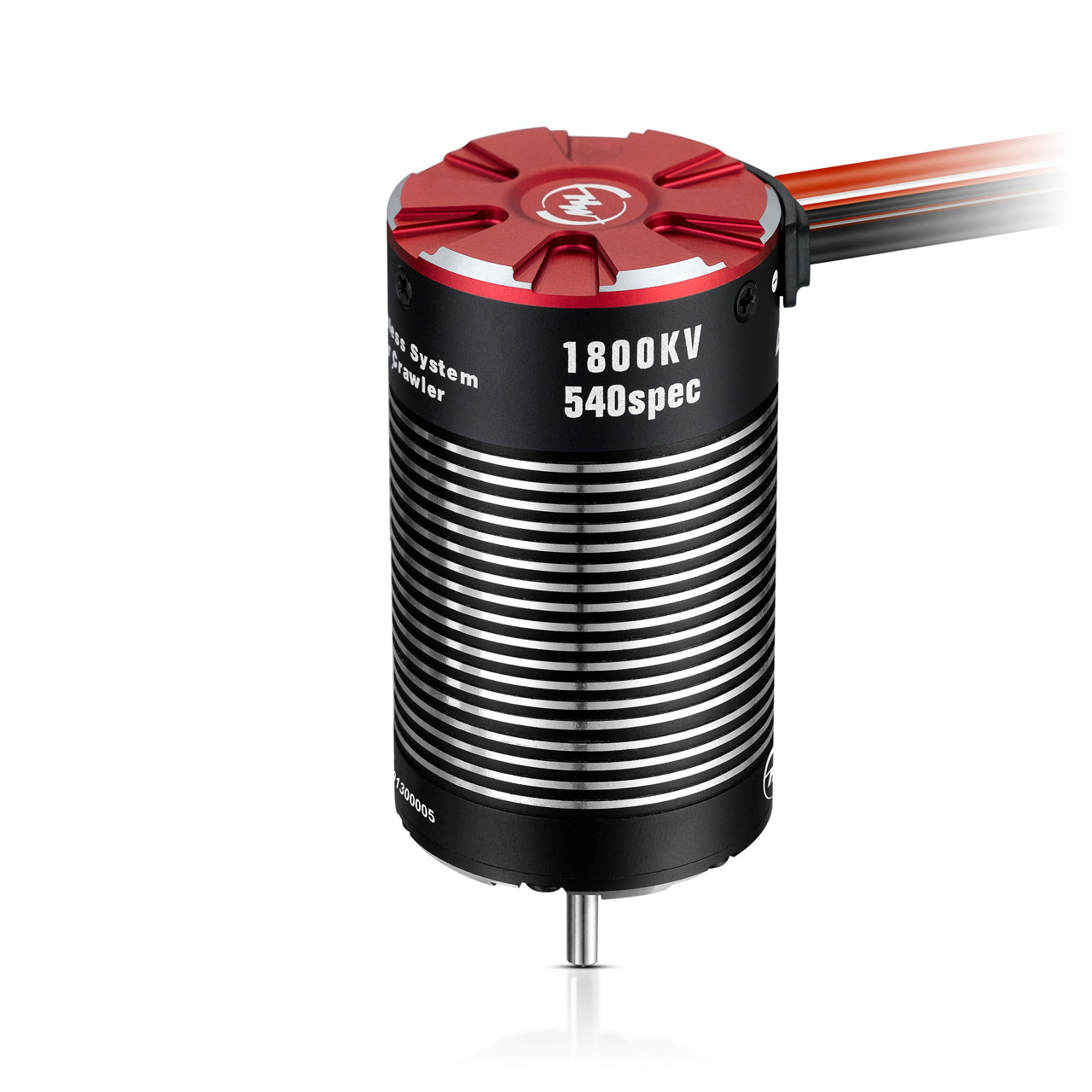

Hobbywing's first motor for 1/10 rock crawlers with integrated controller.

Space in the car is often limited and there is very little room for manoeuvre to accommodate the various cables. Just the size of a typical 550 motor and weighing 210g, you don't realise that the motor and controller are combined here. Thanks to the intelligent torque and speed control, a crawler can easily adapt to any situation. This combo is supported by an outstanding waterproof and dustproof casing. So the fun really knows no bounds. Even the electronic switch is protected accordingly. The technology used is called FOC (Field-Oriented-Control) and is responsible for this super control feel. The sinusoidal motor control keeps the speed-control and motor cooler and ensures that the motor runs silky smooth and quiet.

Features
-2in1: motor and controller combined in one
-Compact design ideal for saving space and reducing weight
-Powerful torque even at slow speeds
-Water and dustproof
-Powerful built-in BEC with voltage switching function
-Various safety mechanisms against: Under-voltage, overheating, loss of throttle, etc.

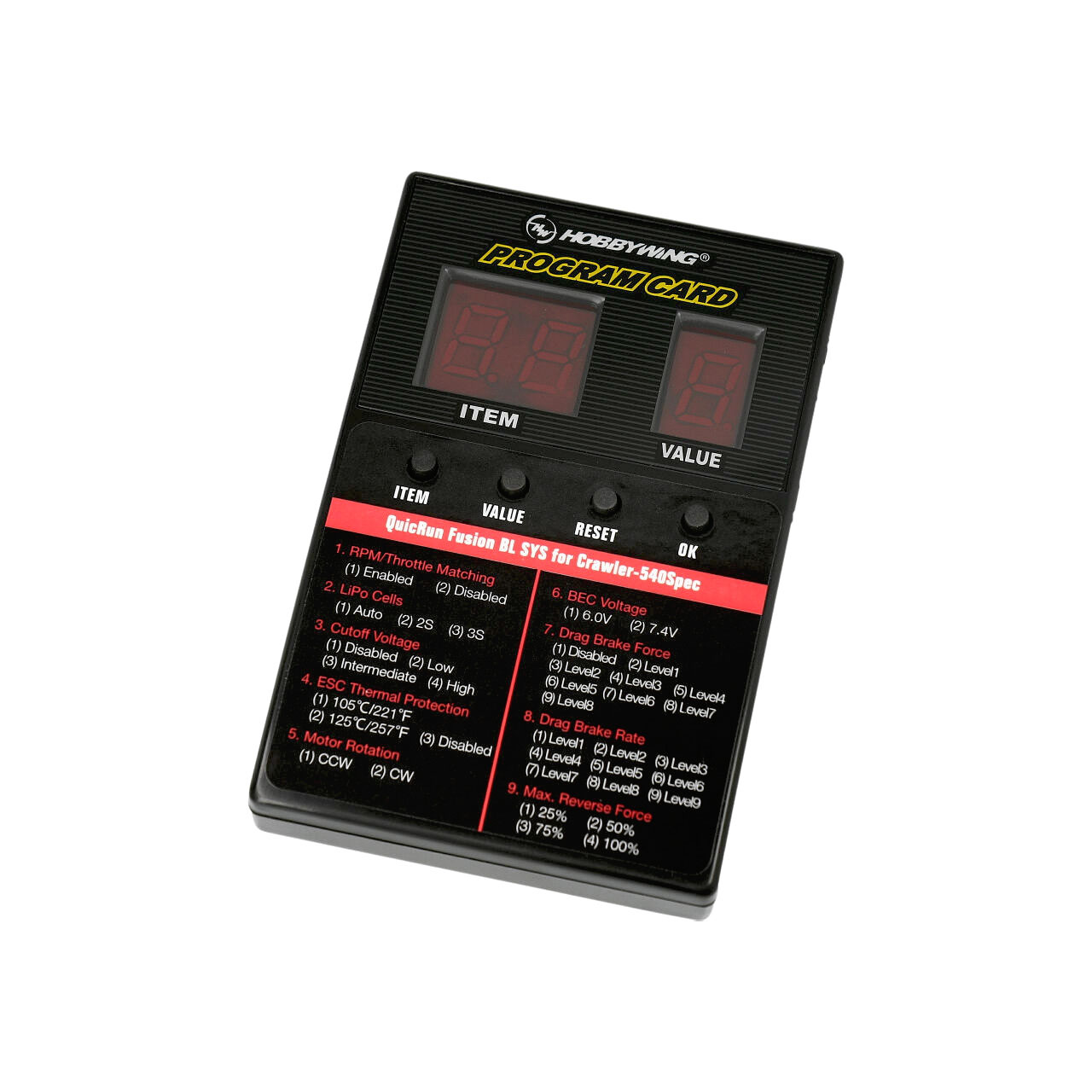

-Programmable with the LED programming box (included)

Technical data:
Type: Brushless FOC Sensored
Current duration/short: 40A/160A
Number of cells: 2s-3s LiPo, 6s-9s NiMH
BEC: 6V/7.4V with 4A
Poles: 4
Speed: 1800kV
Outer diameter: 36mm
Length: 64mm
Shaft diameter: 3.175mm
Shaft length: 16mm
Waterproof: Yes
Programming: Yes
Weight: 210g
Application: 1/10 Rock Crawler
