QuicRun 1060 Brushed Car ESC 60A für 1:10

ESC motor controller for RC cars in 1:10

The Quicrun series is cost-effective and is primarily aimed at beginners and advanced RC car pilots. It impresses with its outstanding quality and uncomplicated commissioning. This ESC (Electronic Speed Controller) supplies the motor with the required voltage and is also responsible for controlling the power of the motor. The built-in BEC supplies the remote control receiver with 6V.

Features:

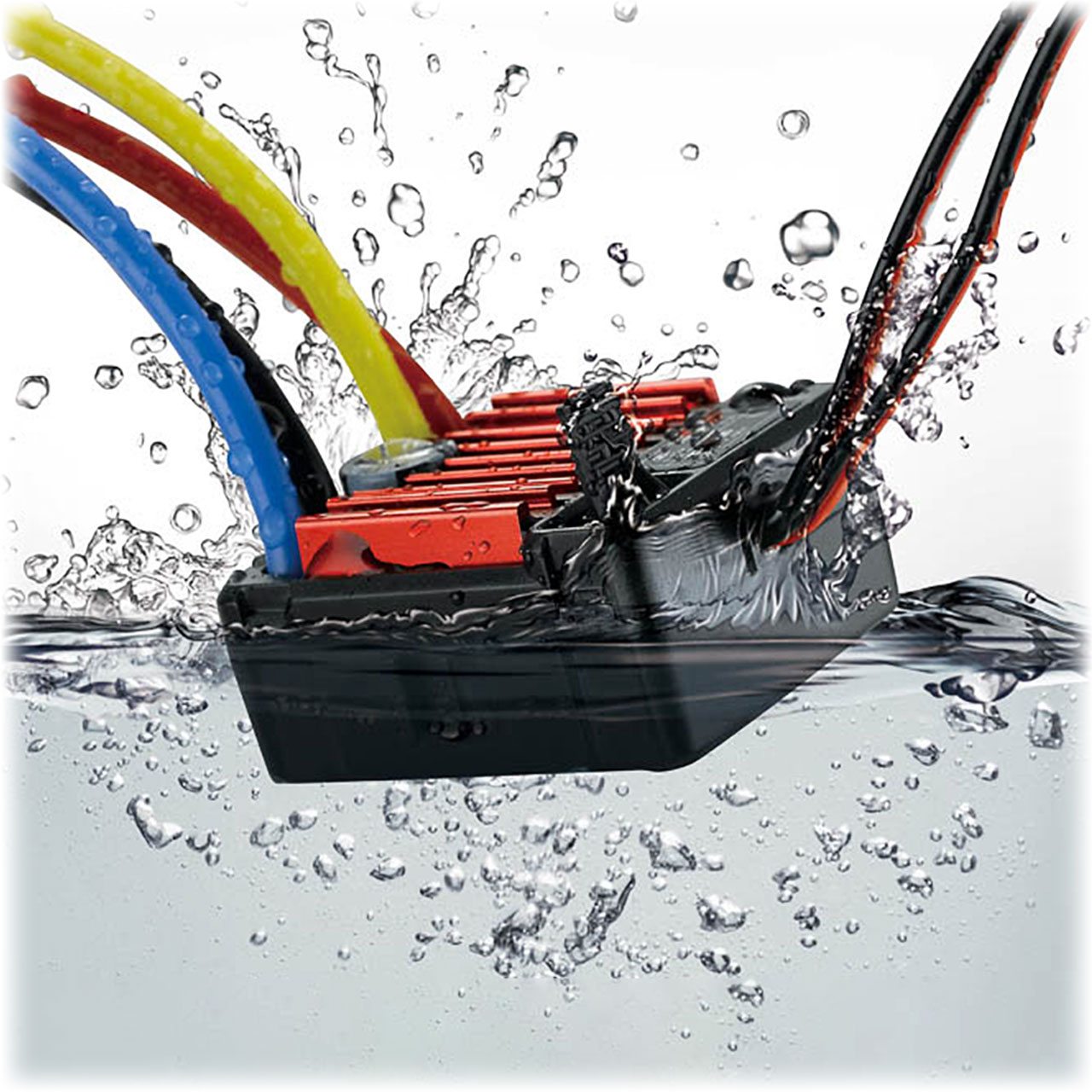

Water & dustproof for use in all weather & track conditions
Small size with built-in capacitor module
Three different driving modes are available:
        Forward / Brake / Reverse
        Forward / Brake
        Forward / reverse (also called crawler mode)
Good current carrying capacity
Built-in switching BEC with high power
Automatic throttle calibration
Easy to program via jumpers
Various protection functions:
        Low voltage protection for batteries
        Thermal overheat protection
        Gas signal loss protection

The controller can be programmed via jumpers.
        Forward / Brake / Reverse
        Forward / Brake
        Forward / reverse (also called crawler mode)
        Battery type: LiPo / NiMH

Technical data

Forward load: 60A/360A
Reverse load: 30A/180A
Voltage range: 2-3S Lipo or 5-9 NiMH
Scale: 1/10
Application / field of use: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler, Tank
Motor limit:
2S Lipo or 6 cells NiMH: 540, 550 Motor size: >=12T or rpm < 30000 @7.2V
3S Lipo or 9 cells NiMH: 540, 550 Motor size: >=18T or rpm < 20000 @7.2V
BEC output: 3A / 6V
Connection: Tamiya
Dimensions: 36.5 x 32 x 18mm
Weight: 39g
