- Order number: 18172
- Hersteller: Pichler
- Zustand: Neuer Artikel
Drive set for brushless motor (14-pole external rotor motor) for model aircraft. Application... more
Product information "Drive set for Fairchild PT 19"

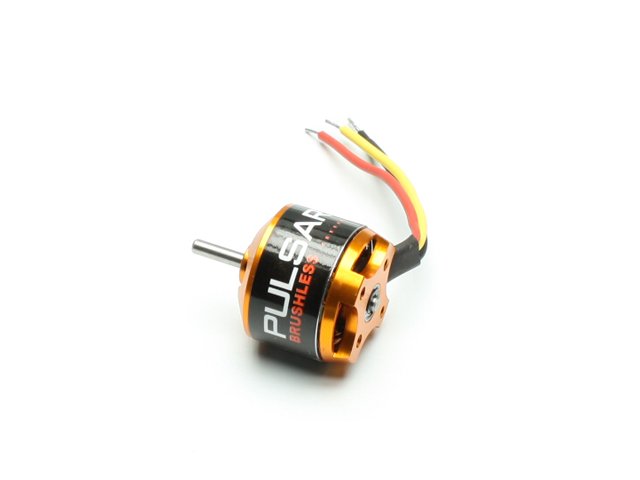

Drive set for brushless motor (14-pole external rotor motor) for model aircraft.
Application
- 3D model aircraft up to 450g
- Aerobatic model aircraft up to 600g
- Gliders up to 800g
Technical data
Dimensions = Ø 28 x L 30mm
Weight = 49g
Shaft diameter = 3.2mm
LiPo battery = 2-3 cells
No-load speed rpm/min_1 = 1000 KV
Max. load 60s = 15A

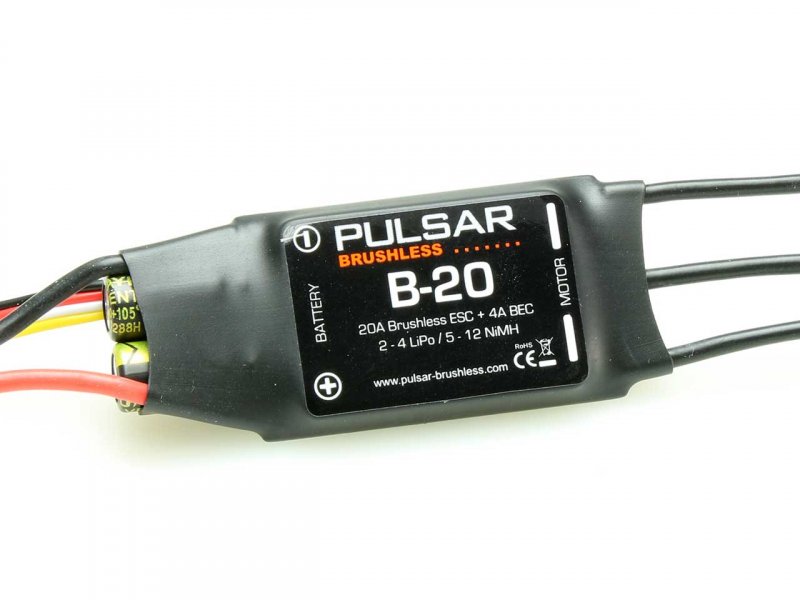

PULSAR brushless controllers impress with their high quality, performance and reliability.
Technical data
Number of cells = 2 -4 LiPo / 5- 12 NiMH/NiCD
Load (continuous) = 20A
Load (short-term) = 30A
Integrated receiver power supply (BEC) = 5V/6V / 4A
Weight = 35g incl. all cables and connectors
Dimensions = 60x25x10mm

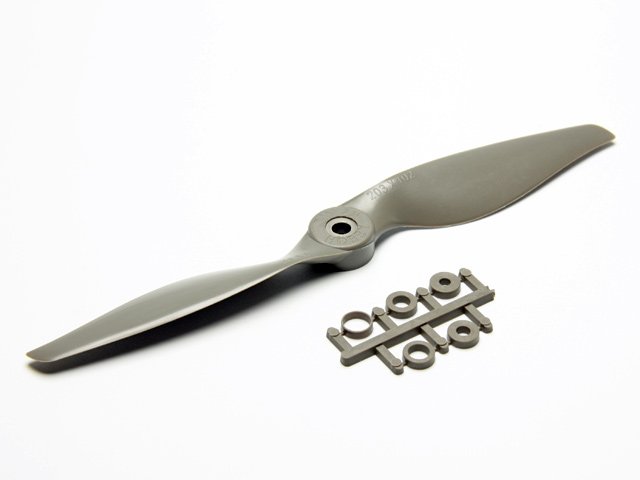

The gray PI-CON (PICHLER Contest) propellers were specially developed for electric flight. They impress with an extremely high fiberglass content and thus maximum stability. The optimized high-performance profile has proven itself in many practical tests.

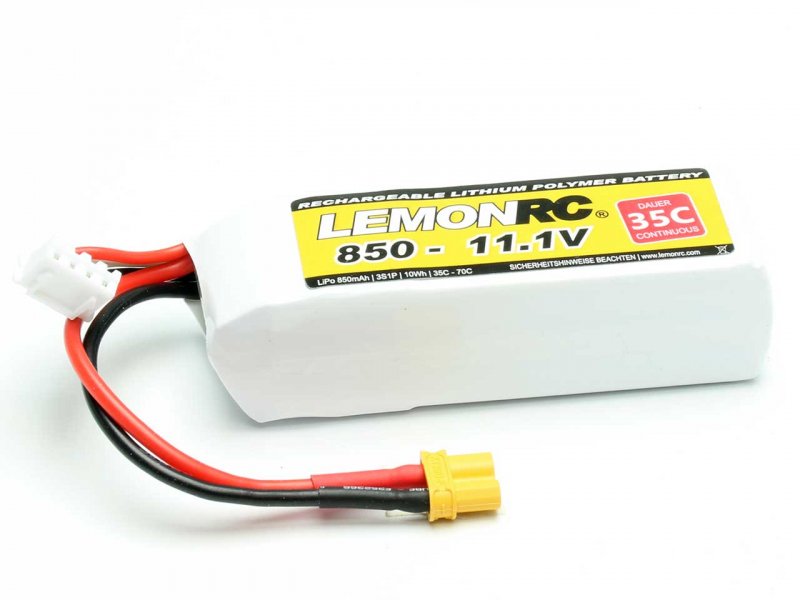

LEMONRC LiPo batteries have been among the best-selling lithium polymer batteries for over 15 years. The LEMONRC brand has been continuously developed using the latest technologies in terms of performance and lifespan. With a continuous load capacity of up to 35C (70C short term), LEMONRC XT LiPo batteries offer sufficient power reserves for almost all R/C model applications.
LEMONRC XT LiPo batteries are fitted with the proven XT connectors. Adapter cables for other connector systems are available from us.
Product features
- Low internal resistance for high load capacity
- Compact design and perfect workmanship
- Specially developed for R/C model sports
- Strictly selected top quality
- Fresh goods from the latest production
- 30-point quality check
Technical data
Capacity = 850mAh
Voltage = 11.1V
Energy (watt hours) = 9.44 Wh
Configuration = 3S1P
Maximum continuous load = 29.75A (35C)
Maximum short-term load = 59.5A (70C)
Dimensions (LxWxH) = 75x25x22 mm
Weight with cables = 76g
Connector = XT30 + XH balancer

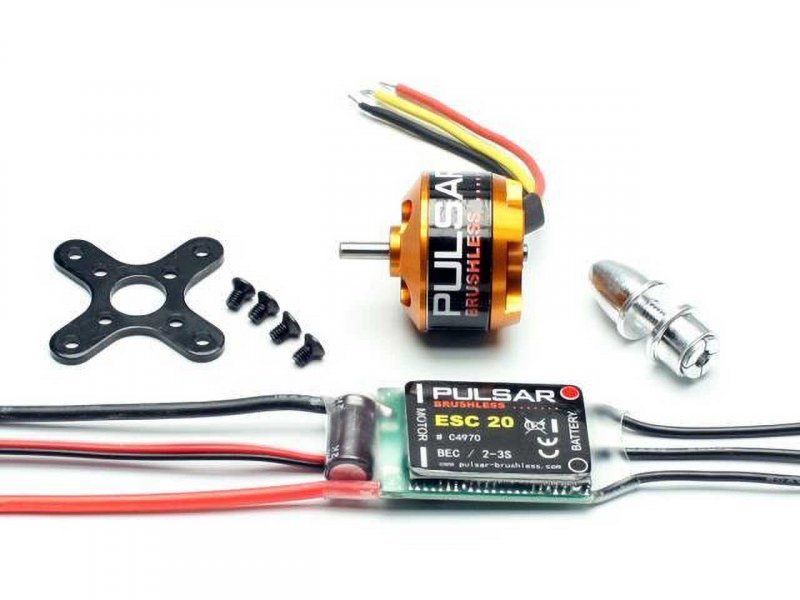

Power system for Fairchild PT 19 consisting of:
1 x PULSAR 15 Brushless Motor
1 x PULSAR B-20 Brushless ESC
1 x PI-CON Propeller 7x5
1 x LiPo Battery LEMONRC 850-11.1Vr C Falke
