RHINO Racer

Product information ‘RHINO Racer’

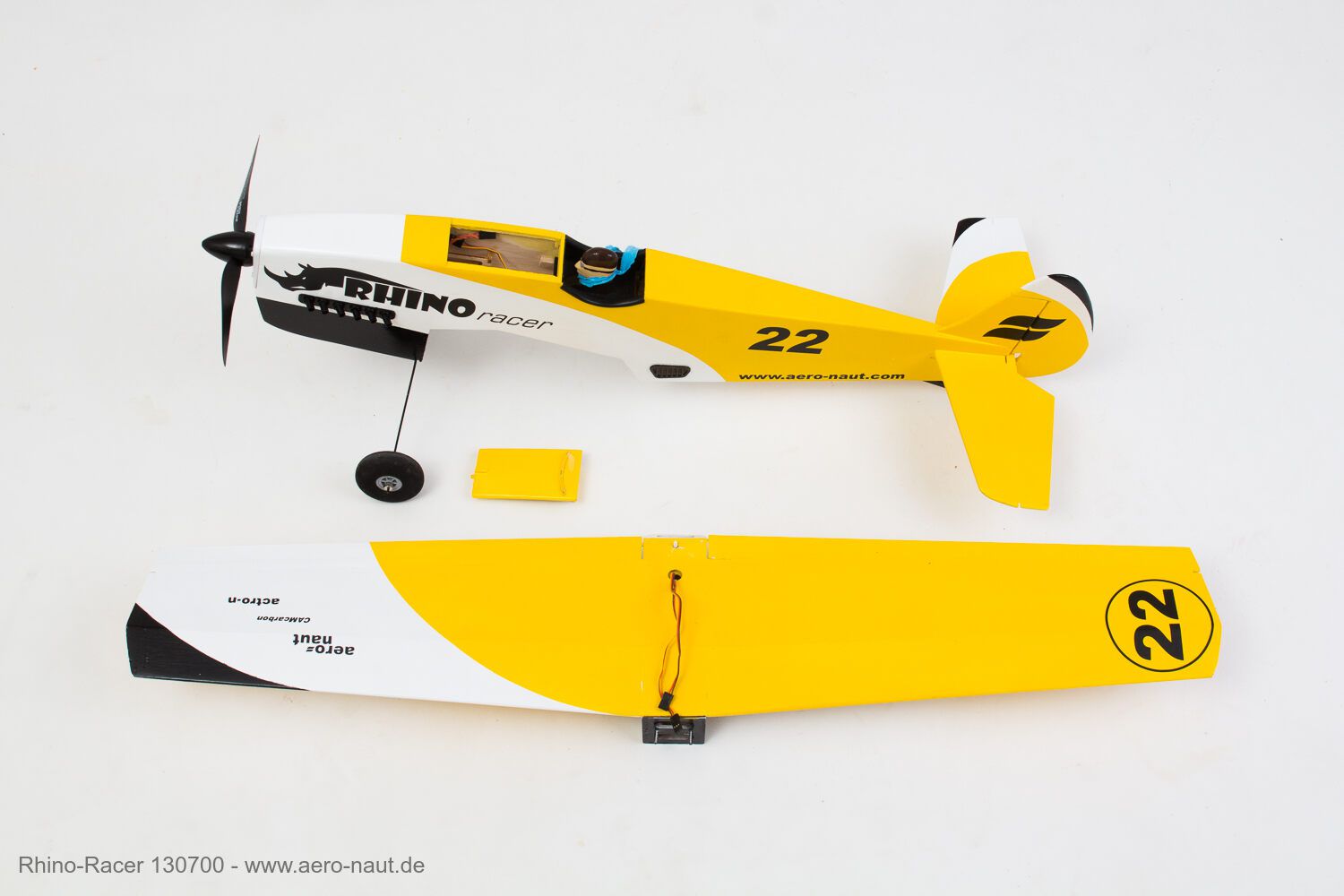

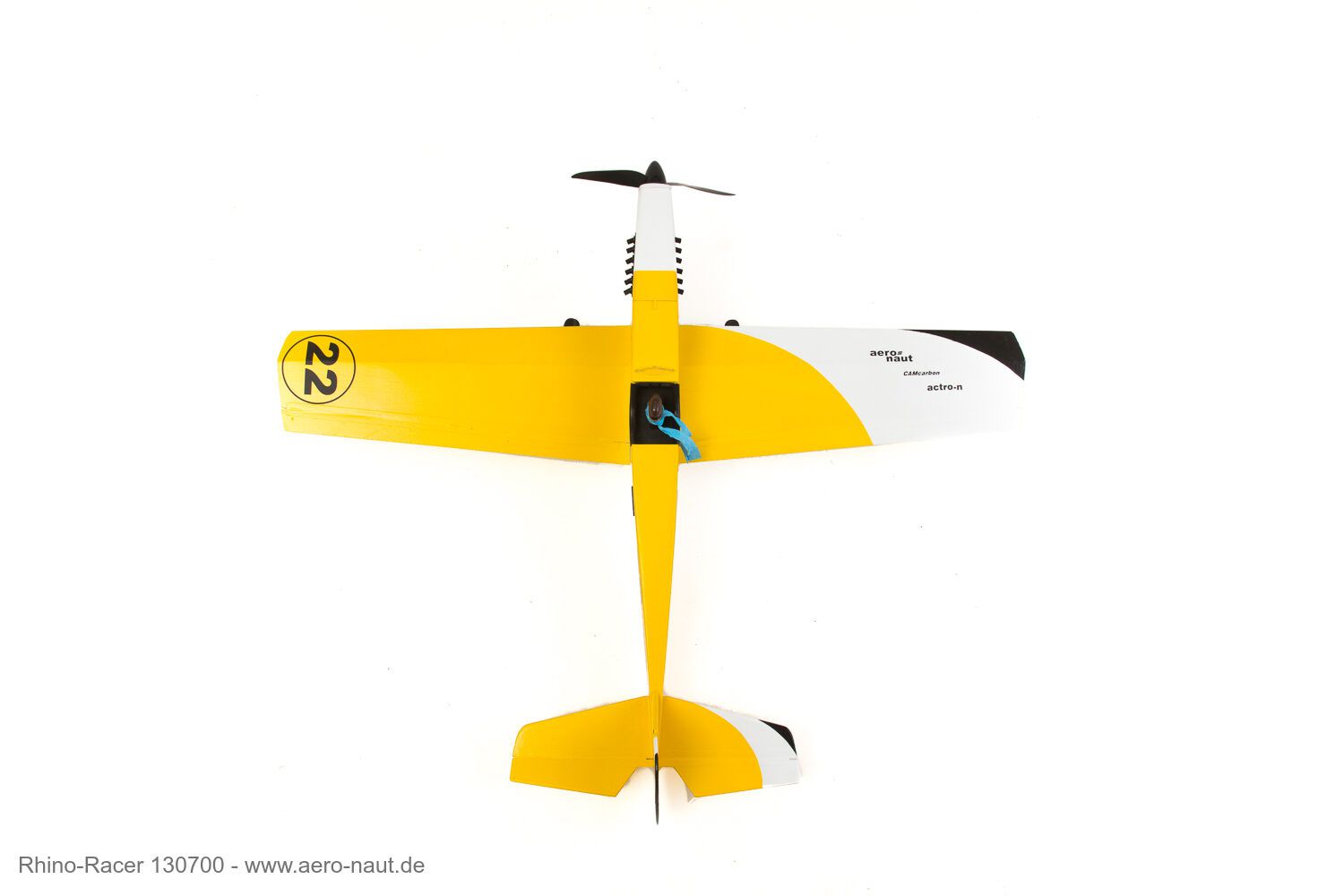

RHINO - Racer is a fun model made from a wooden kit.

Its appearance is reminiscent of the racing planes of the 1930s, mixed with a cartoon-like silhouette. The model is constructed entirely from laser-cut parts and is manufactured in Germany to the usual high quality standards. It is primarily aimed at pilots who already have experience with faster aileron models.

Assembly is based on the well-known and unique 3D assembly instructions from aero-naut, which guide you quickly and easily through the entire construction process.

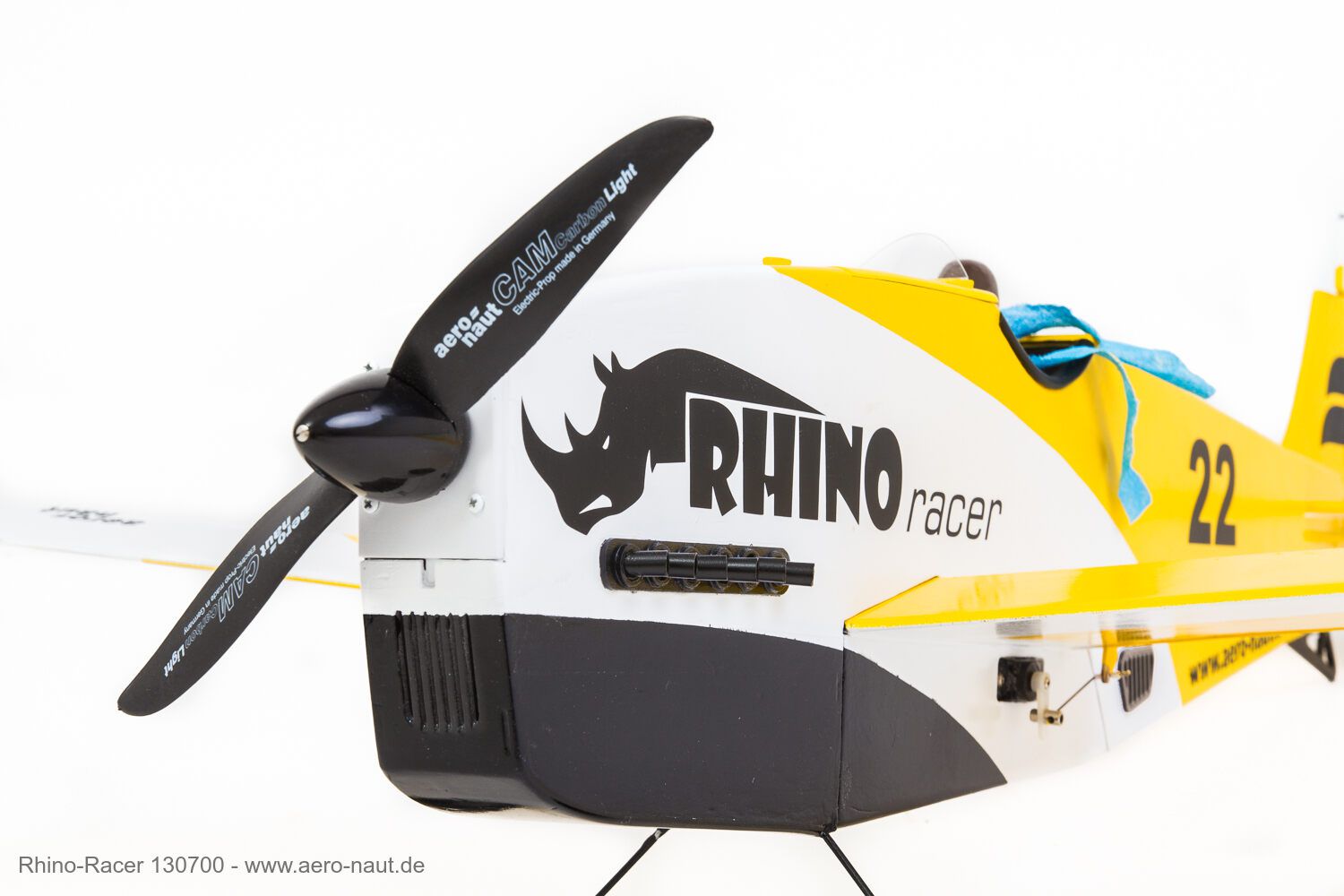

The little speedster is packed with great details, such as exhaust tailpipes, engine coolers, cooling air outlets on the fuselage, removable engine bulkhead for easy access to the engine and controller, pilot figure, cockpit instruments and windscreen.
The wing is built in one piece and can be removed from the fuselage with a central screw.

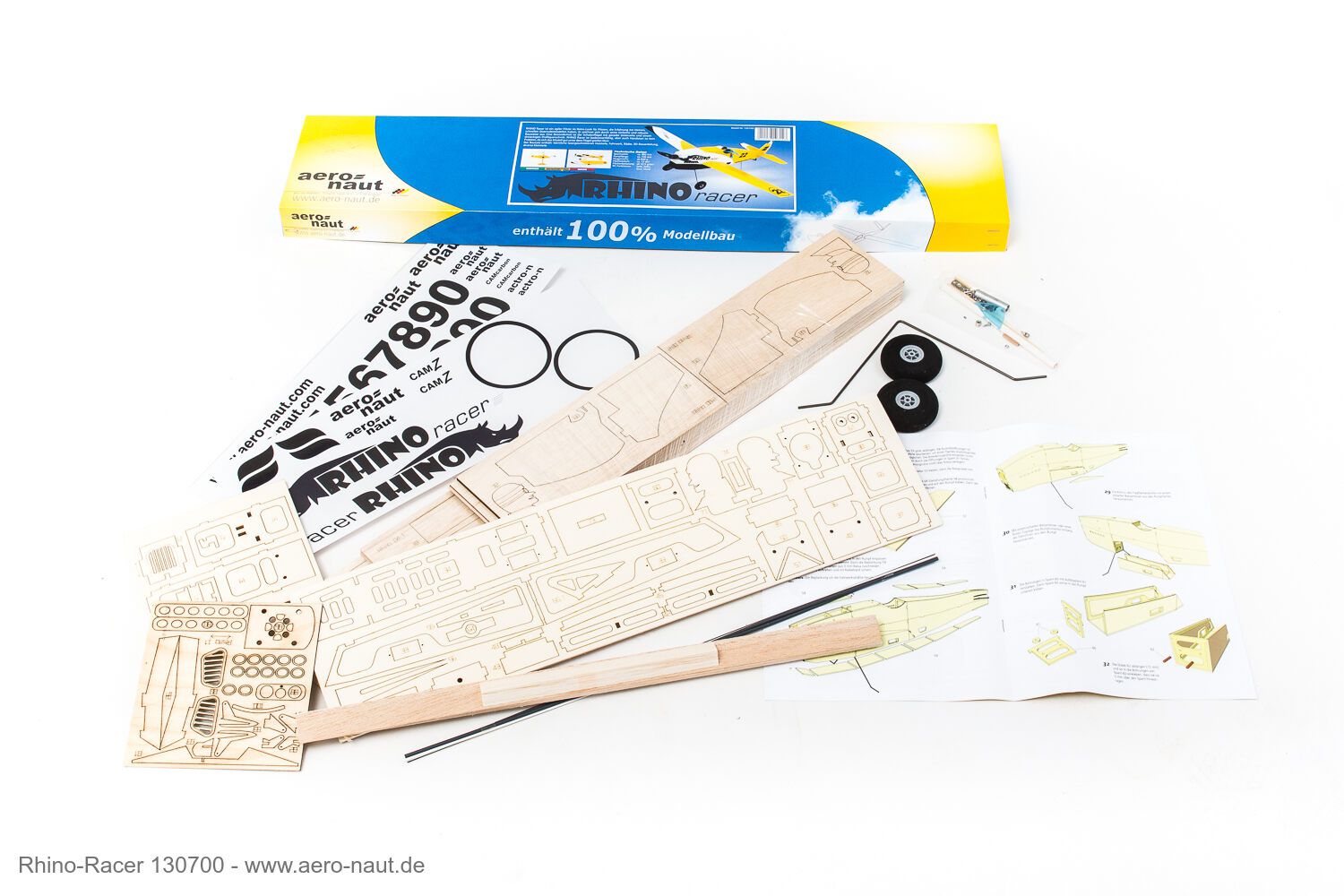

The kit also includes a ready-bent landing gear and matching wheels. Small parts and linkage parts complete the kit, so that the RC components can be installed immediately after construction.

28 mm motors are suitable for propulsion. We offer a complete propulsion set for this model under order number 130701. Four AN-12-MGBBA servos (order no. 700374) are required for control.

Technical data
Wingspan approx. 880 mm
Length approx. 730 mm
Flying weight from approx. 630 g
Wing area approx. 12 dm²
Wing loading from approx. 52 g/dm²
RC functions Elevator, rudder, ailerons, motor control
